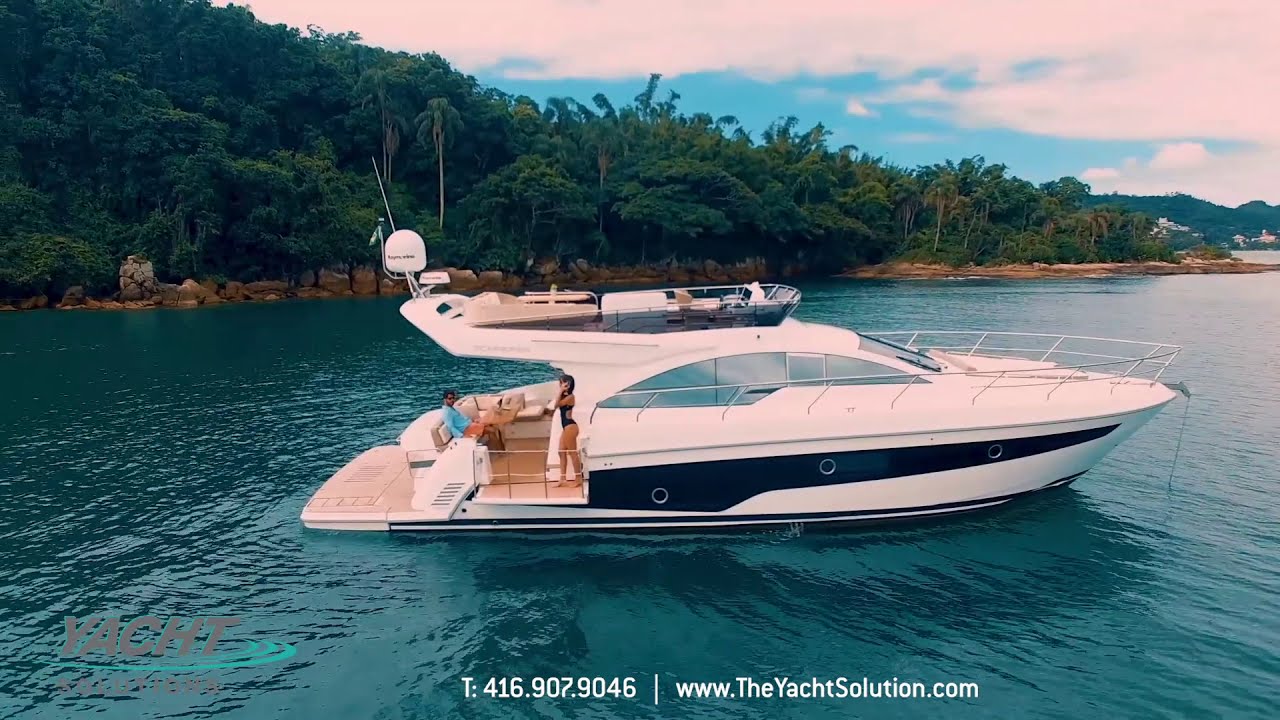

Introducing the Schaefer 510 GT. What was already an amazing yacht just got better. Featuring a full-beam midship suite with over six feet in headroom provides the space and comfort you’d expect from a thoroughbred. With a comfortable midship master suite, 3 internal layout options for up to 3 suites, a large aft square and gourmet space on the platform, the Schaefer 510 GT redefines the concept of space in a 50-foot yacht.
Max. Length: 51′ 11″ (15.82 m)
Max. Beam: 14′ 4” (4.36 m)
Max. Draft: 4′ 2″ (1.26 m)
Dry Weight: 40,344 lbs (18,300 kg)
Deadrise: 17°
Max Speed: 27.5 knots*
Cruising Speed: 24 knots*
Fuel Consumption at Cruising Speed: 129.7 L/h (34 Gal/h)**
Range: 164 N.M**
Fresh Water Capacity: 580 L (153 Gal)
Fuel Capacity: 1300 L (343 Gal)
Installed Gensets: 1 x 11.5 kW
Max Clearance: 17’ (5.18 m)
Passenger Cap.(day): 16
Passenger Cap.(night): 6 + 1
Designer: Marcio Schaefer
With one of the biggest machining equipment of the Americas, Schaefer Yachts CNC guarantees the accuracy in the production of all parts involved in the project.
All parts are produced by a vacuum infusion process resulting in lightweight and sturdy vessels that provide a more comfortable, safe and economical journey.
With its own in-house woodwork, Schaefer Yachts found the solution to bring the finish and refinement desired in our boats.
‣ Vacuum Infusion
‣ Isophthalic Polyester Resin
‣ Skin Coat in Vinyl Ester Resin
‣ GRP with PVC Foam-Cored Hull, Deck and Superstructure
‣ Structural Chassis with Girder and Floor Plate
‣ Hydraulic Balcony with Folding Chairs
‣ Wooden Table
‣ Sofa Upholstered in Nautical Leather
‣ Teak Floor
‣ 12V Courtesy Lights
‣ Stainless Steel Cleat
‣ Storage Hatch

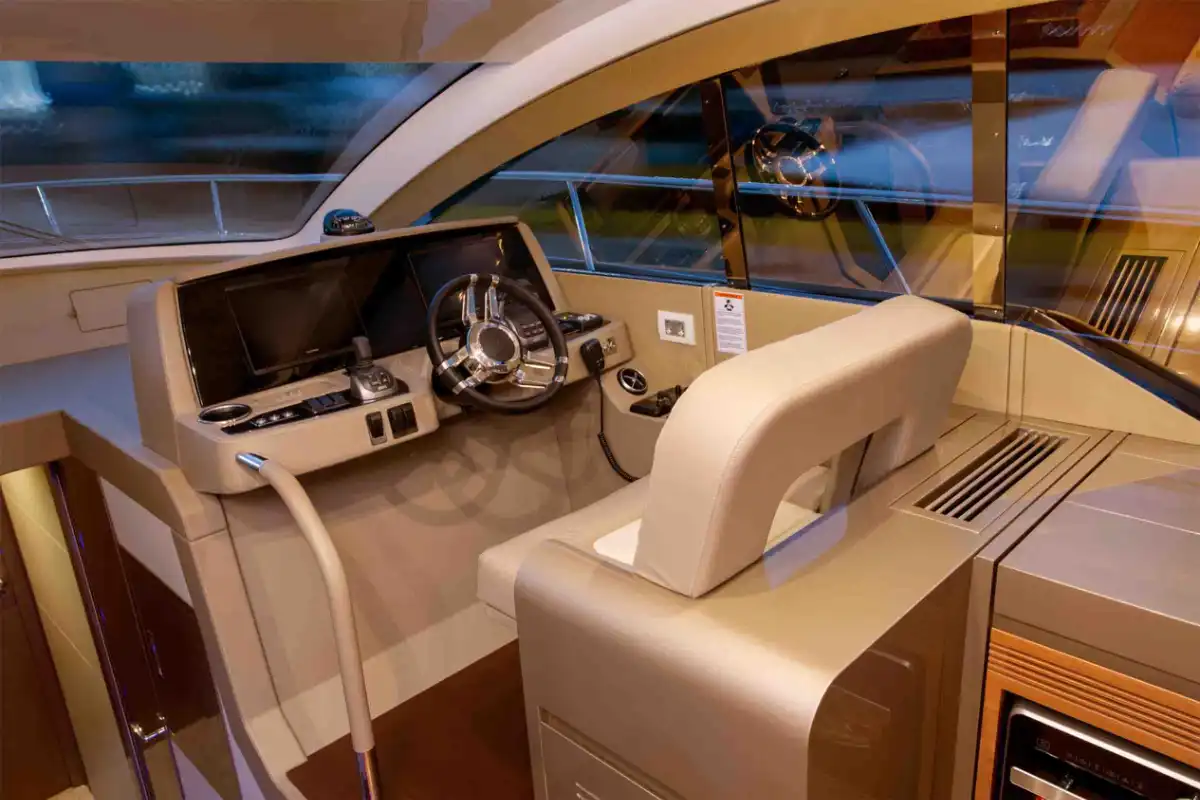

‣ Leather Captain’s Chair
‣ Dashboard in Leather
‣ Engine Control Display
‣ Electronic Control Panel
‣ Cup Holder
‣ USB Outlets
‣ Glass Windshield with Wipers
‣ Horn
‣ Compass
‣ Stainless Steel Rail
‣ Sunbathing Cushion
‣ Winch Control
‣ Platform in Teak
‣ Gourmet Area with Grill, Sink and Faucet
‣ Built-In Stainless Steel Ladder wth Hand Grip
‣ Shower with Hot and Cold Water
‣ 2 Built-In Coolers
‣ Second Helm Station
‣ Wet Bar with Built-in Cooler
‣ Sofa Upholstered in Nautical Leather
‣ Wooden Table
‣ Stainless Steel Stairs with Teak Steps
‣ Lounge Area
‣ 32″ LED TV with Blu-Ray Player
‣ Sound System with Home Theatre
‣ Electric Windows
‣ Table
‣ Sofa
‣ Air Conditioning
‣ Carpet/Hardwood Flooring
‣ 12V LED Courtesy Lights
‣ Oven with Microwave
‣ 2 Refrigerators
‣ Silestone® Countertop with Sink and Faucet
‣ 2 Burner Electric Cooktop
‣ Cabinets with Drawers and Holders for Cups and Plates
Master Suite
‣ 32″ LED TV with Blu-Ray Player
‣ Double Bed
‣ 2 Bedside Tables
‣ Cabinets with Shelves and Drawers
‣ Sofa
‣ Electric Toilet
‣ Air Conditioning
‣ Carpet
VIP Suite
‣ Double Bed
‣ Furniture with Shelves
‣ Air Conditioning
‣ Electric Toilet
‣ Carpet
Starboard Cabin
‣ Twin Bed with Filler Cushion for Double
‣ Furniture with Shelves
‣ Electric Toilet
‣ Carpet
Crew Cabin
‣ Single Bed
‣ Electric Toilet
‣ Air Conditioning
Lighting
‣ Dimmable 12V LED Lights
Mooring System
‣ 6 Stainless Steel Cleats
‣ 1500W Windlass with Remote Control
‣ 44lbs Anchor with 164′ of Chain
Power Supply
‣ 11.5 kW Generator
‣ 50-Amp Inlet
Air Conditioning System
‣ AC Controls in Salon and all Suites
‣ 32,000 BTU in Salon
‣ 12,000 BTU in Master Suite
‣ 10,000 BTU in VIP Suite
‣ 6,000 BTU in Starboard Cabin
‣ Crew Cabin Shared with Salon
Bilge Pump System
‣ 1 x 3700 GPH 12V Electric Bilge Pump
‣ 2 x 2000 GPH 12V Electric Bilge Pump
‣ 1 x 500 GPH 12V Electric Bilge Pump
‣ Flood Alarm System
Batteries
‣ 2 x 150Ah 12V DC Batteries for Engines (parallel)
‣ 3 x 150Ah 12V DC Batteries for Service
‣ 1 x 220Ah 12V DC Batteries for Winch
‣ 1 x 105Ah 12V DC Batteries for Sound System
‣ 1 x 220Ah 12V DC Batteries for Generator
‣ 30Ah 12V Battery Charger for Sound
‣ 80Ah 12V Battery Charger for Winch and Service
Other Equipment
‣ 50/60Ah Galvanic Isolator
‣ Soundproofing
‣ Exhaust Fans
‣ Electric Trim Tabs
‣ Hot Water System
The Glass Cockpit seamlessly integrates industry-leading navigational features from Garmin with the power of the Volvo Penta Electronic Vessel Control System. Easily access and control engine, driveline and navigation data from the comfort of one, adaptable multi-function screen. You can even turn cabin lights or music on and off, at a touch.
A unique innovation for the marine industry, joystick driving, sets a new benchmark in intuitive, flexible driving – one that transforms the game entirely. With the new joystick driving, you won’t just level up your skills; you’ll redefine them. Simply push the joystick forward to engage the gear, speed up or slow down, and release it to remain at a certain speed. The acceleration will be proportional to the angle of the joystick. When the joystick is pulled back, the throttle reduces, and the boat will stop. To further enhance the driving experience, electronic gear shifting enables smooth acceleration and deceleration.
Steer with one hand with perfect response and minimal effort. You can utilize the ergonomic Joystick for next-level control of your bow thruster, engine thrust and steering, or both in unison, depending on your preferred installation.
You can dock your boat the easy way with the Volvo Penta Assisted Docking system – the next generation of marine automation. It simplifies boat docking by removing the dynamics of wind and current, and improves your control for maneuvering in tight spaces, to make docking boats safe and easy in challenging conditions.
The Assisted Docking system enhances your control as captain. From moving in straight lines without manual compensation, to rotating around a fixed point – docking your boat is now easier than ever before.
With Cruise Control, both engines automatically sync to the same RPM, so you can find your perfect cruising speed and stay in full control of your journey ahead. With only your fingertip, you can fine-tune your rpm – giving you the freedom to choose exactly how fast, how fuel efficient, and how comfortably you explore the ocean.
A yacht autopilot system supports you, to help reduce captain fatigue so you can be your best at the helm. The Volvo Penta Autopilot with Shadow Drive is a complete and fully integrated auto-steering system, for accurate boat navigation you can trust.
Enjoy a seamless experience at sea, as your boat easily keeps to its desired heading. Autopilot works in sync with electronic steering and the Glass Cockpit System, both of which are required for installation.
The Dynamic Positioning System (DPS) automatically holds your boat position, despite of wind and current. Integrating seamlessly with the joystick, maintaining your heading and position is simpler than ever.
Simply press a button on the Joystick Control and your boat’s position and heading is safely kept within a precisely limited area, even in rough conditions. Easily disengage the system by moving the control levers or pressing the button once again.
The groundbreaking Volvo Penta Inboard Performance System (IPS) is a propulsion solution like no other. From smooth cruising in silence to extra space on board, get ready to revolutionize your time on the water. All with up to 30% fuel reduction. Seriously.
Enjoy unrivalled maneuverability and an even smoother ride. The key to the Volvo Penta IPS experience lies in the individually steerable drives positioned under the hull, forward-facing, with twin counter-rotating propellers.
